Automatic Door Passenger Elevator

Safe, reliable and modern elevators with automatic doors.

Passenger Elevator

Auto door passenger elevators for residential and commercial buildings, hotels, clubs and bungalows, depending upon the shaft size, with speed and amenities up to the choice of owners.

Smooth & safe ride
Reliable performance
Ideal for residential, commercial buildings, hotels, clubs & bungalows

Speed

0.65 to 1.5 m/s

Capacity

6 to 20 passengers

Get a Free Quote Talk to an expert

Speed

0.65 to 1.5 m/s

Capacity

6 to 20 passengers

Safety

Certified

Options

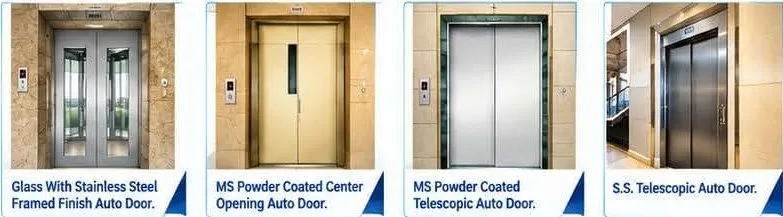

Automatic door options

Glass with stainless steel framed finish auto door
MS powder coated center opening auto door
MS powder coated telescopic auto door
S.S. telescopic auto door

Technical

Drawings & specifications

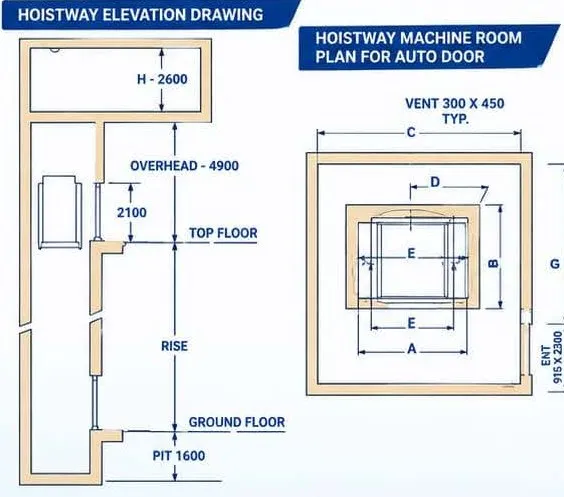

Hoistway elevation & machine room plan

Load		Lift well		Car inside		Entrance		Machine room
Persons	Weight (kg)	Width A	Depth B	Width C	Depth D	Width E	Height F	Width G	Depth G	Height H
6	408	1900	1650	1100	1000	800	3000	3000	3000	2500
8	544	1900	1650	1100	1100	850	3000	3300	3200	2500
10	680	2500	2000	1100	1100	1000	3200	3200	3500	2500
13	884	2500	2000	1300	1100	1300	3500	3500	4000	2500
16	1088	2500	2000	1300	1500	1300	4000	4000	4200	2500
20	1360	2500	2050	2000	2000	1550	4500	4500	4800	2500

• All dimensions are in mm.
• This is general data and may be changed without notice.
• All hoistway walls should be minimum 230 mm brick or 150 mm R.C.C.
